Post Bottle Filler - Foot Operated

Description

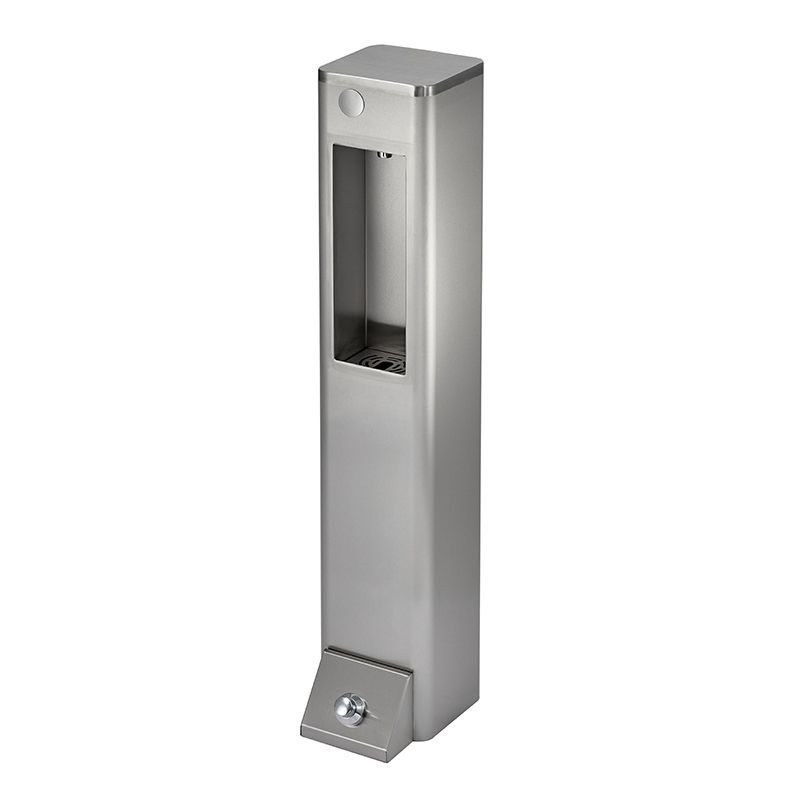

- Model BF907 is our stainless steel free-standing post bottle filler with foot operation
- Hands free design, developed in response to customer demand for a hygienic, space saving bottle filler
- Free-standing pedestal design as standard
- Can be easily converted to floor and wall mounted design by removing the back panel
- Foot valve operation dispenses water when pressed and shuts off instantly when released to prevent water waste
- Manufactured from grade 304 stainless steel
- Rounded corners for safety
- Floor and wall mounting points
- Supplied fully assembled for easy installation
- Lockable side door for access to fixing points and plumbing connections

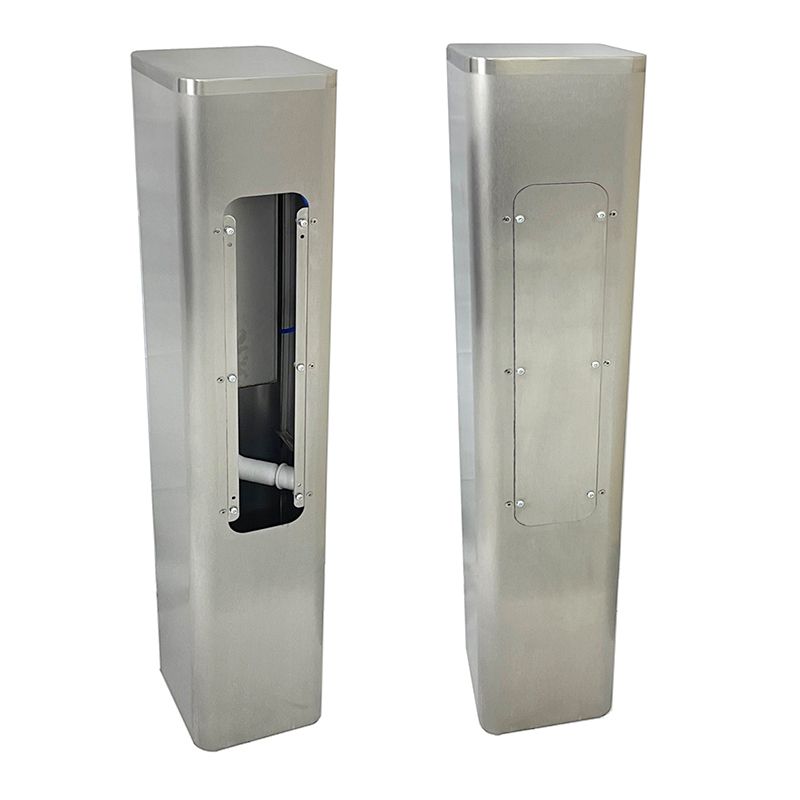

- Removable rear panel with large opening to facilitate water supply pipes and waste connections if fitted up against a wall
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer or filter must be included in the water supply system. The Y-strainer / filter plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer or filter will void the warranty.

Includes

- WRAS approved foot valve
- WRAS approved water path fittings
- 32mm flush grated waste fitting, flexible waste pipe, laminar flow outlet and internal pipework

Delivery

- Normally in stock, 1 to 2 working days

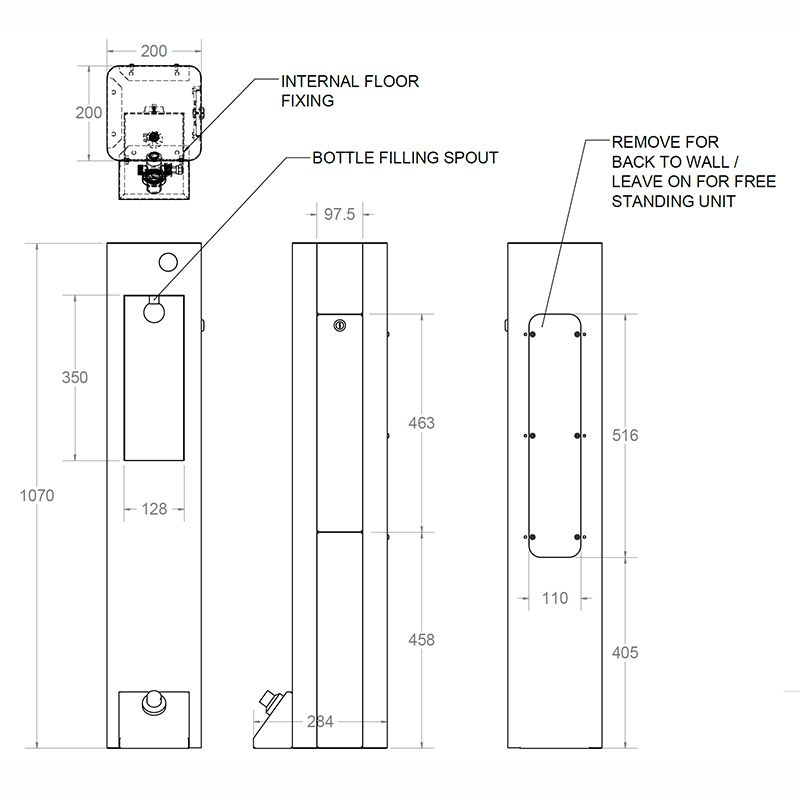

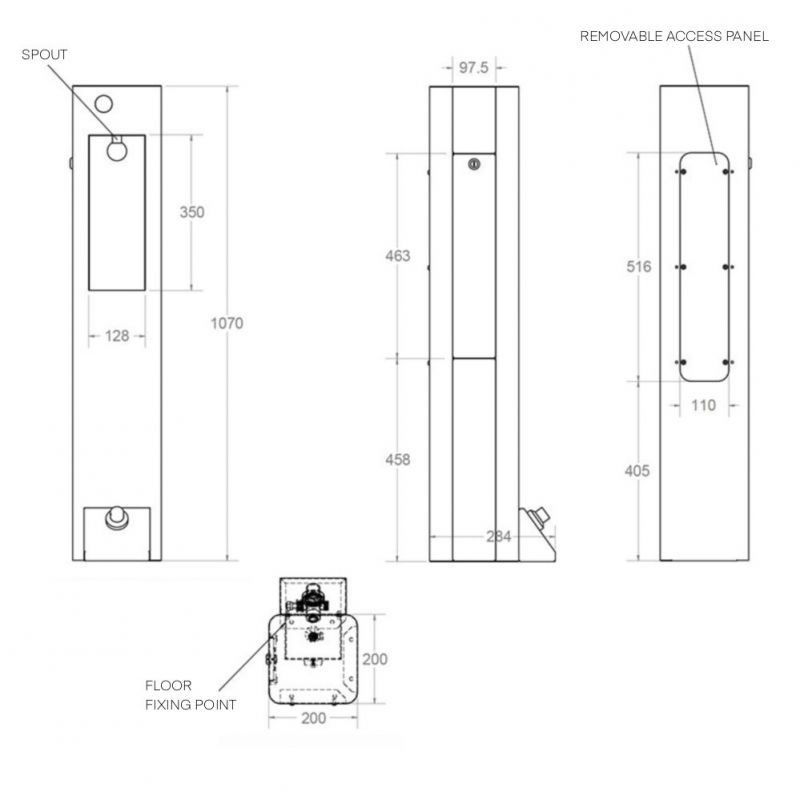

Dimensions

- Height: 1070mm
- Width: 200mm
- Front to back without foot plate: 200mm
- Front to back with foot plate: 284mm

Where can this be installed?

- Ideal for installation in schools, colleges, universities, sports facilities and public spaces
- Suitable for outdoor use providing the water is isolated and drained down during adverse weather conditions (freezing temperatures)

Optional Extras
- TVS364116 - Y strainer double check valve
- OEMAX10 - 10 inch inline water filter
- SA-KEYAL - Keyed alike lock & keys
