Outdoor Drinking Fountain With Integral Bottle Filler

Description

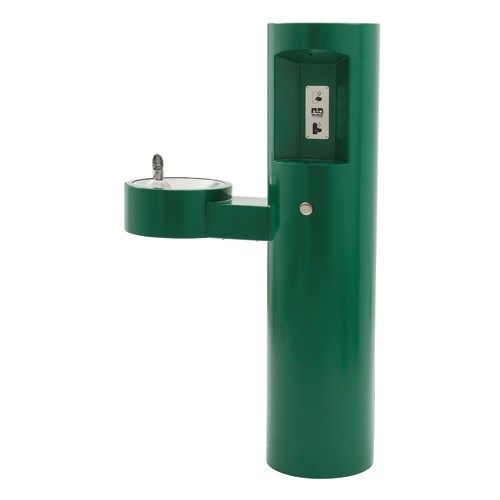

- Model GYM75 is our pedestal mounted bottle filler with a drinking fountain mounted on an arm
- 1.2mm thick grade 304 stainless steel bowl mounted into a 2mm thick heavy duty stainless pedestal
- 2mm thick heavy duty stainless steel shroud and arm
- This unit is activated by front mounted button
- The drinking water bubbler is manufactured from polished stainless steel
- DDA complaint when mounted at the correct height
- Easy to clean
- Resistant to sunlight, heat, moisture and wear
- Available in stainless steel, red or blue and customer specified colours
- To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Includes

- Green powder coated finish
- Polished stainless steel, anti-rotation non-squirt bubbler
- Side access door fixed with security screws
- Heavy duty bottom stainless steel fixing plate
- Anchor bolts
- WRAS approved water fittings

Delivery

- In stock 1-3 days

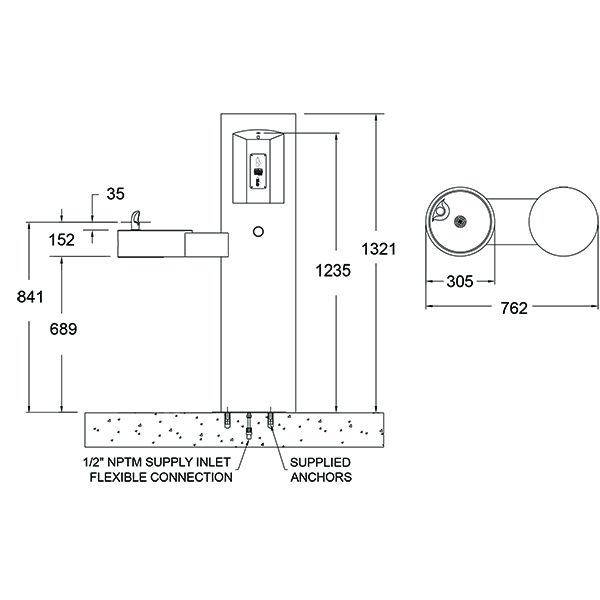

Dimensions

- Height: 1321mm overall
- Width: 762mm overall
- Front to back: 305mm overall

Where can this be installed?

- Can be installed outside if drained down in the colder weather to prevent the water freezing
- Schools, colleges, universities, gyms, factories, offices

Optional extras

- IAP – Inground anchor plate to set into concrete base
- In line water filter
- TVS364116 - Y strainer double check valve

FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
