Deck Mounted Mains Operated Sensor Tap
Deck Mounted Mains Operated Sensor Tap
Product Code: TVS7035C
No documents uploaded.

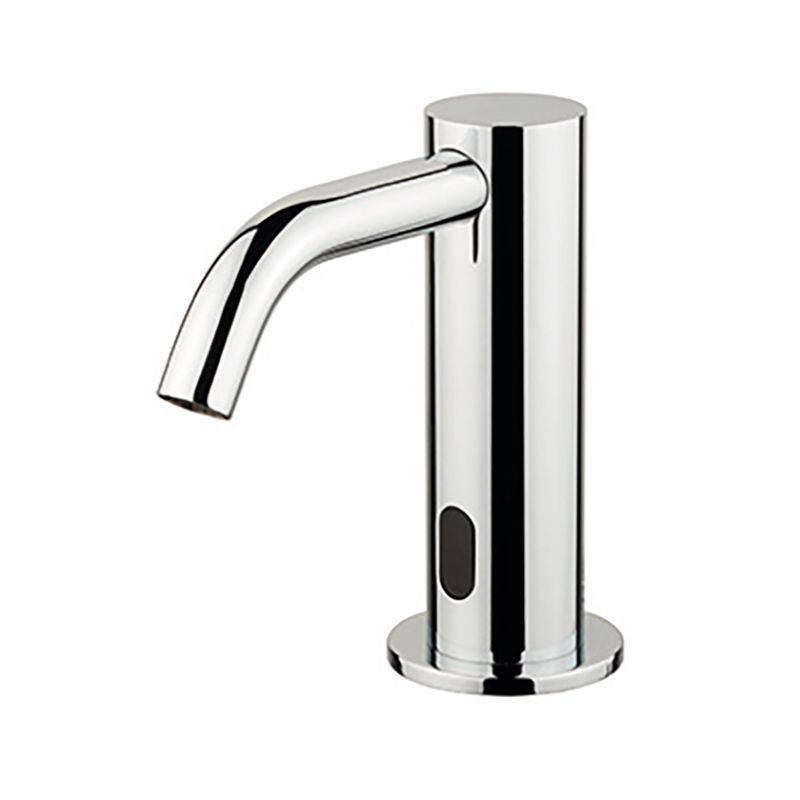

Model TVS7035C is our deck mounted mains operated infrared sensor tap. Hygienic no touch technology ideal for public toilets, schools, office etc. Automatic switch off when hands are removed from sensors range.
Material and Specifications
Chrome plated brass body with forward facing sensor window
Supplied with solenoid valve and main transformer
Single inlet for cold or pre-mixed water supply
WRAS approved
Downward angled spout to reduce water retention
3 second shut off when hands removed
13 second security shut off - sensor needs to be re-triggered after 13 seconds continuous use to prevent water waste
1 year manufacturer’s warranty against defects
Inline Y strainer or filter should be used to protect the solenoid from waterborne debris
Requires single 35mm tap hole
Minimum pressure required 0.5 Bar
Max water pressure 6 Bar
Max temperature 80 degrees C

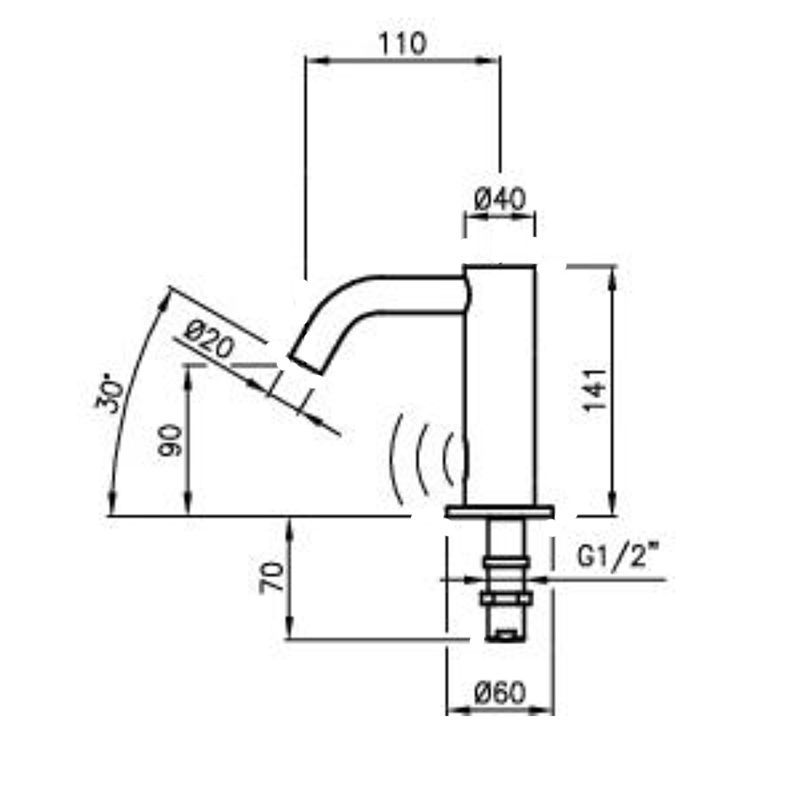

Spout height 90mm
Spout reach 110mm
Delivery
In stock, 1 to 2 working days
Optional Extra
- TVS7001TMV3-15 - thermostatic mixing valve
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
