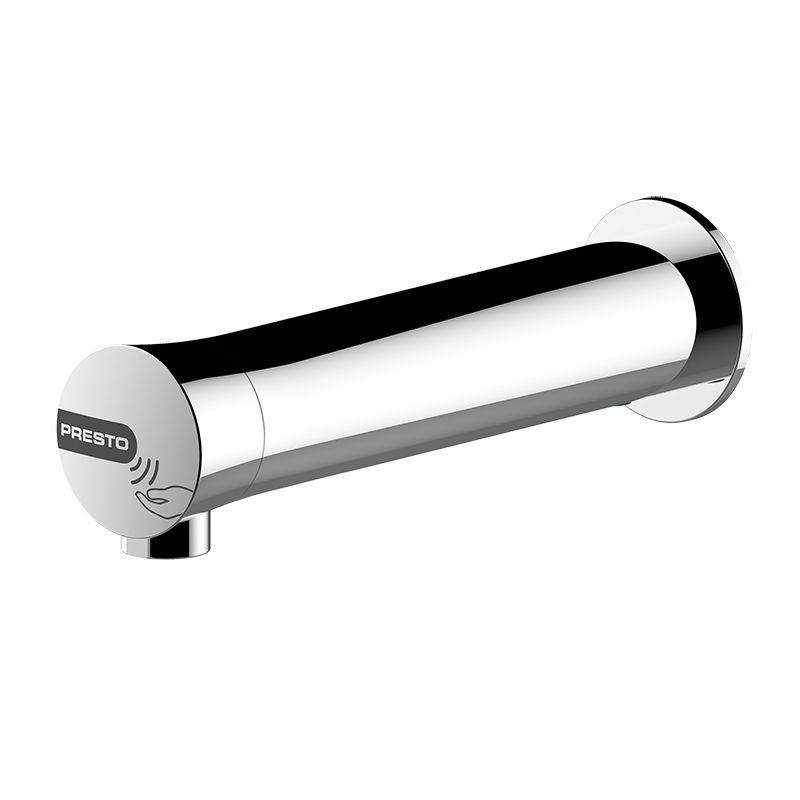

Wall / Panel Mounted Sensor Tap - Mains Supply

Description
- Model TVS6985 is a mains operated sensor basin tap with timed flow
- The sensor area is in close proximity to tap to ensure operation only when hands are used and not triggered by reflections
- Run time is set to 7 seconds after single activation
- Supplied with mains transformer (240VAC to 7VDC) in IP65 waterproof case
- Chrome plated brass body
- 1.9 litres per minute flow rate
- Anti limescale aerator
- Single supply for premixed or cold water
- Security run time set to 30 seconds to avoid overflow
- 24 hours after last use the tap will auto flush for 30 seconds
- Requires 30mm tap hole
- 2 x 1 metre extension leads provided for battery and solenoid connections
- 1.5 metre water inlet tube which can be cut to suit installation
- WRAS approved
- CE marked
- 10 year warranty (excludes battery)
- Suitable for wall thickness up to 35mm
- Battery operated version also available

Water Pressure
- Min operating pressure: 1 bar
- Max static water pressure: 5 bar

Flow Rates
- 1 bar - flow rate 1.4 l/min
- 2 bar - flow rate 1.6 l/min
- 3 bar - flow rate 1.9 l/min
- 5 bar - flow rate 1.9 l/min

Delivery
- From stock, usually 1 to 2 working days

Optional Extras
- TVS7001TMV3-15 - TMV3 mixing valve
