Knee Operated Wash Trough
Knee Operated Wash Trough
Product Code: WE503
Description

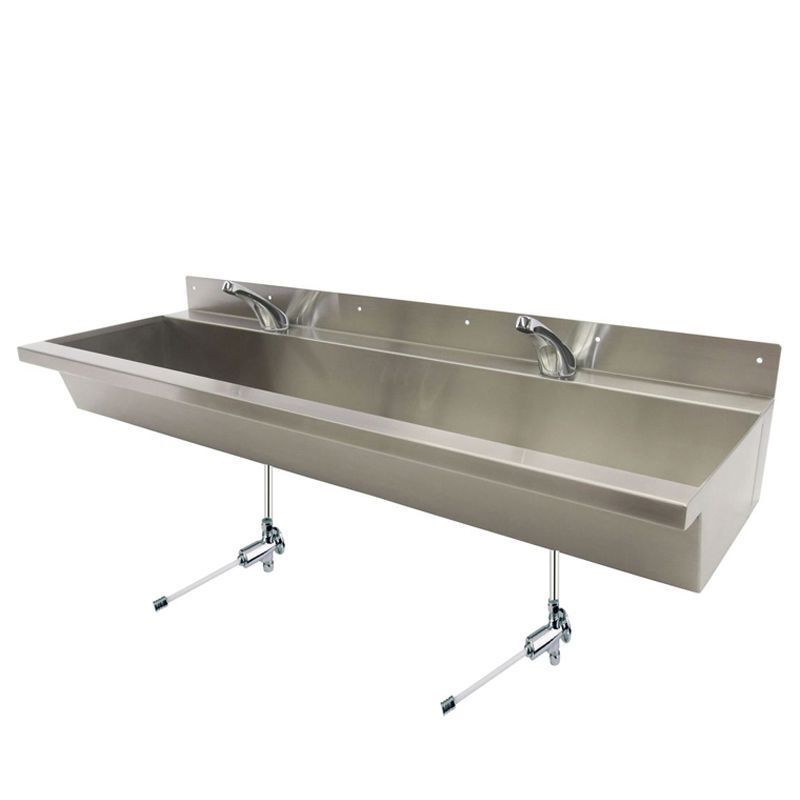

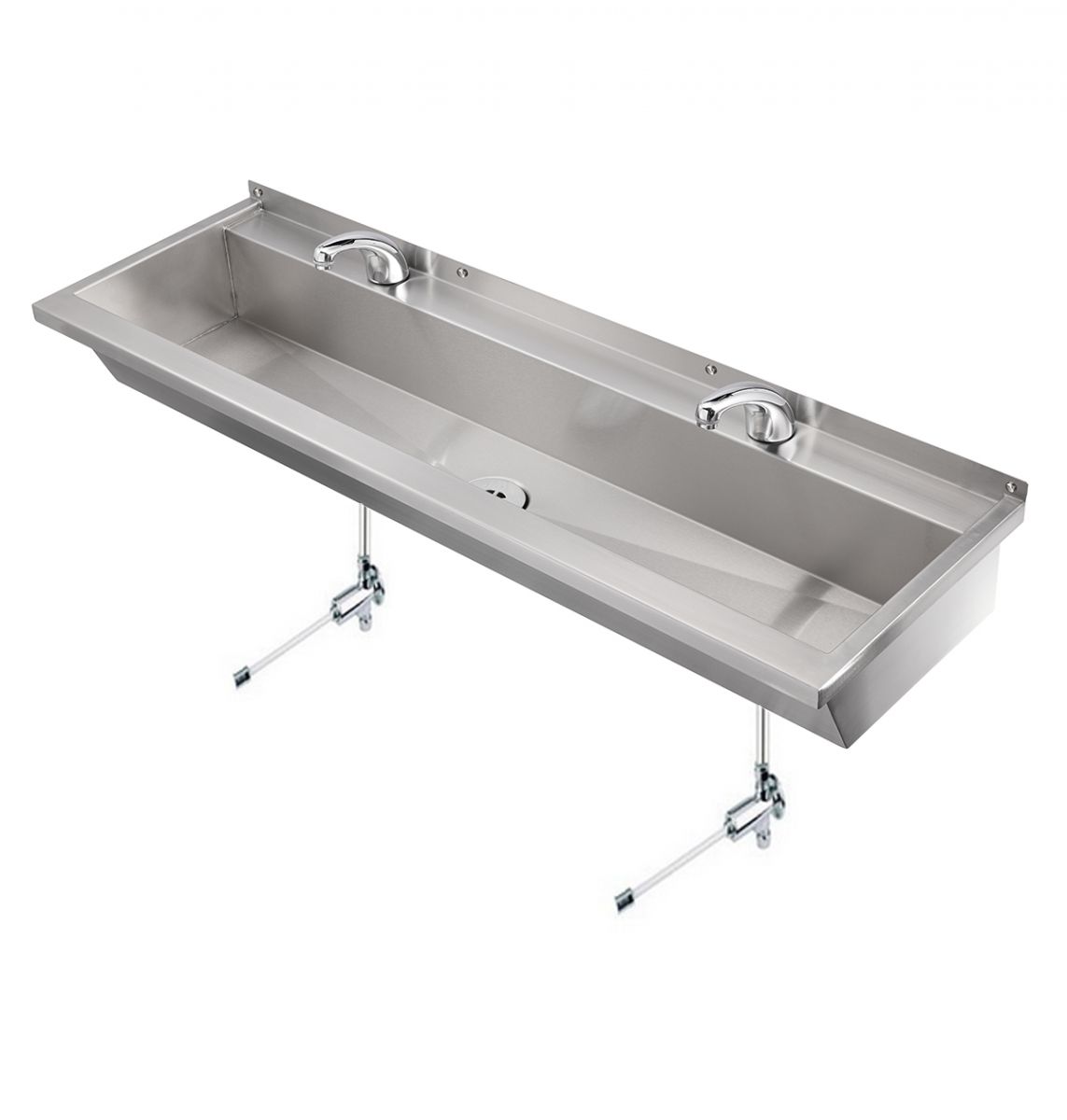

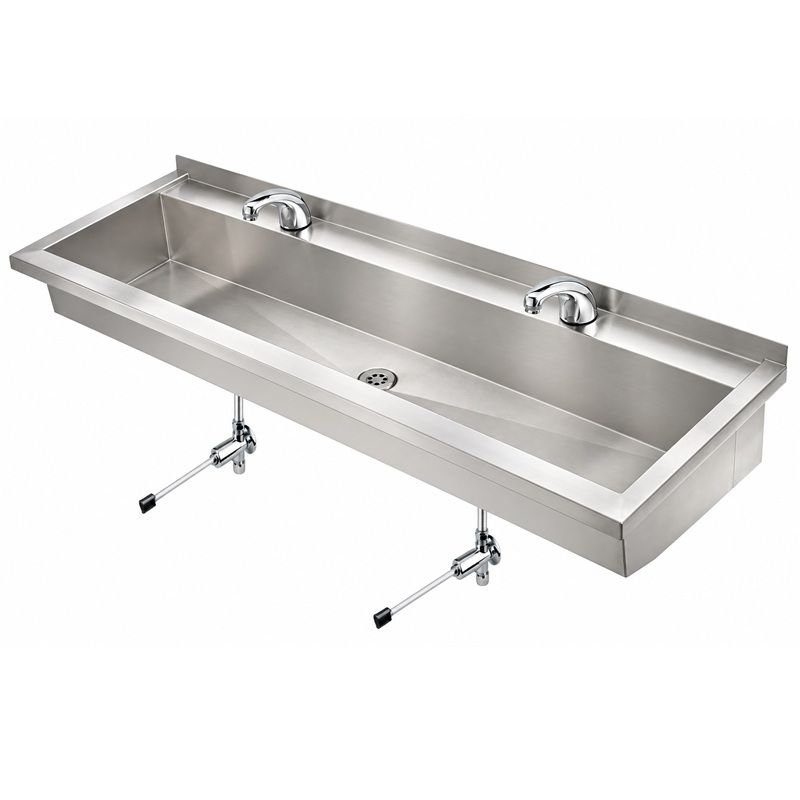

- Model WE503 is a knee operated, wall mounted, hand washing trough
- Wash trough with hands free operation using time flow knee valves and fixed deck spouts to prevent cross contamination
- Constructed from grade 304 stainless steel, 1.6mm thick for heavy duty use and extra vandal resistance
- Available from stock in 8 standard sizes: 500mm for 1 user, 1000mm and 1200mm for 2 users, 1500mm and 1800mm for 3 users, 2000mm and 2400mm for 4 users and 2500mm for 5 users

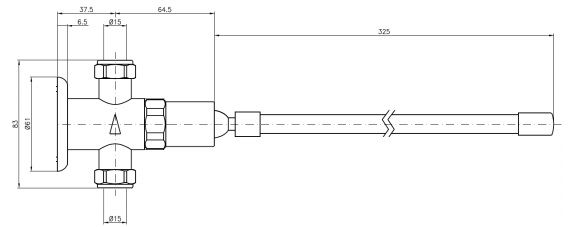

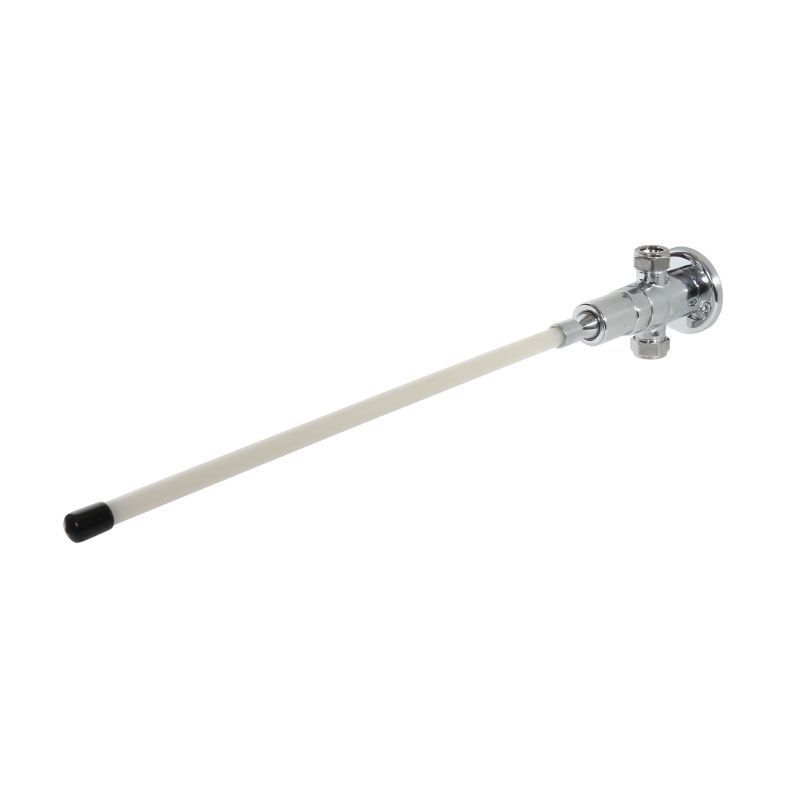

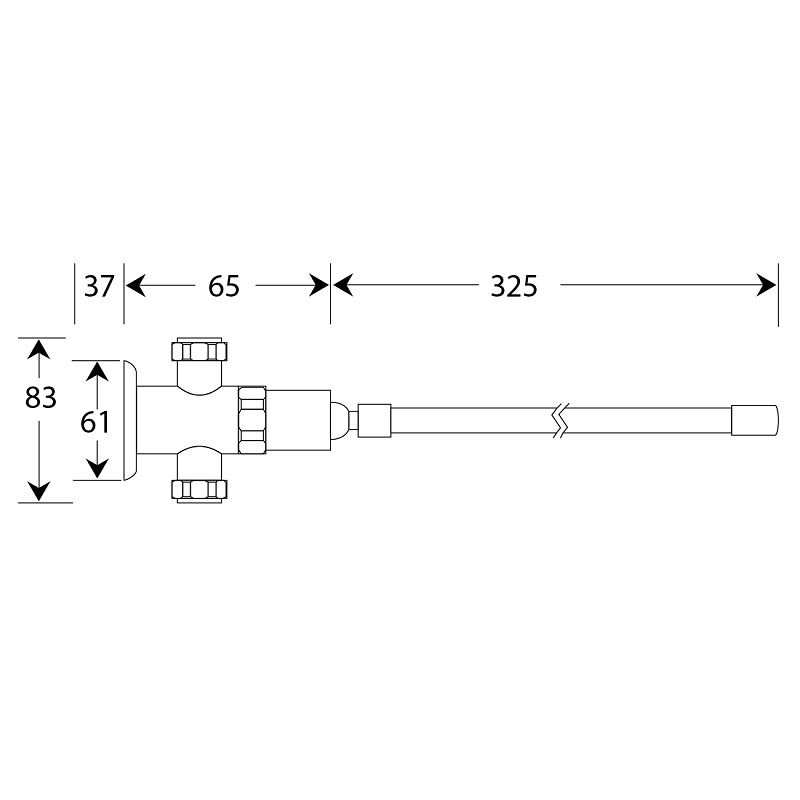

- Knee valves are chrome plated with 15mm compression fittings and time flow set for approx. 15 seconds at 3 bar water pressure

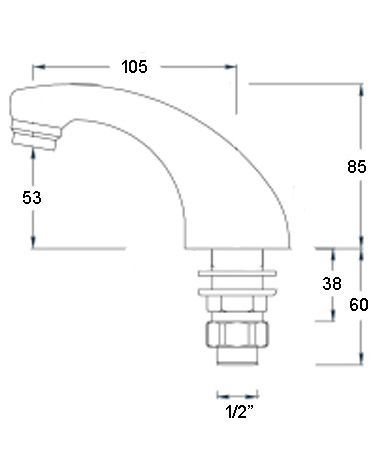

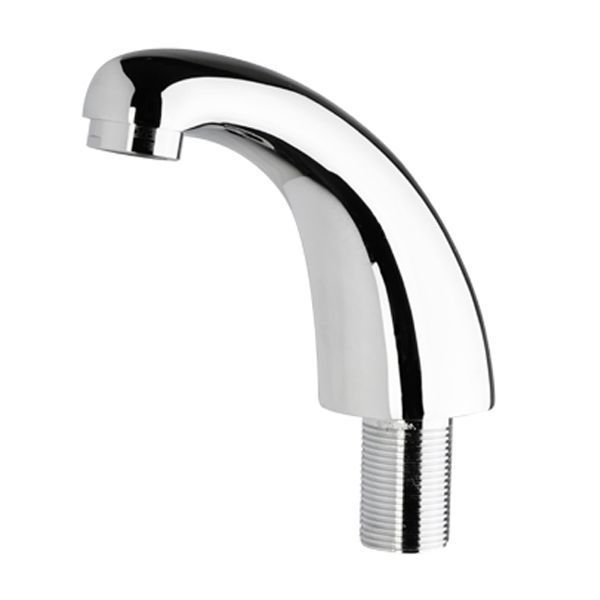

- Fixed basin spouts are chrome plated (interconnecting pipework shown but not supplied)
- Cost effective solution for providing multiple hand washing facilities than traditional basins
- Taps and knee valves will need to be installed on site
Package Includes
- WE305 stainless steel wall mounted wash trough c/w centre 38mm (1.5") flush grated waste fitting included (no plug or overflow)
- TVS6831TKV chrome plated knee valve per user
- TVS6912DSP chrome plated fixed basin spout per user
Delivery
- In stock, usually 2 to 3 working days

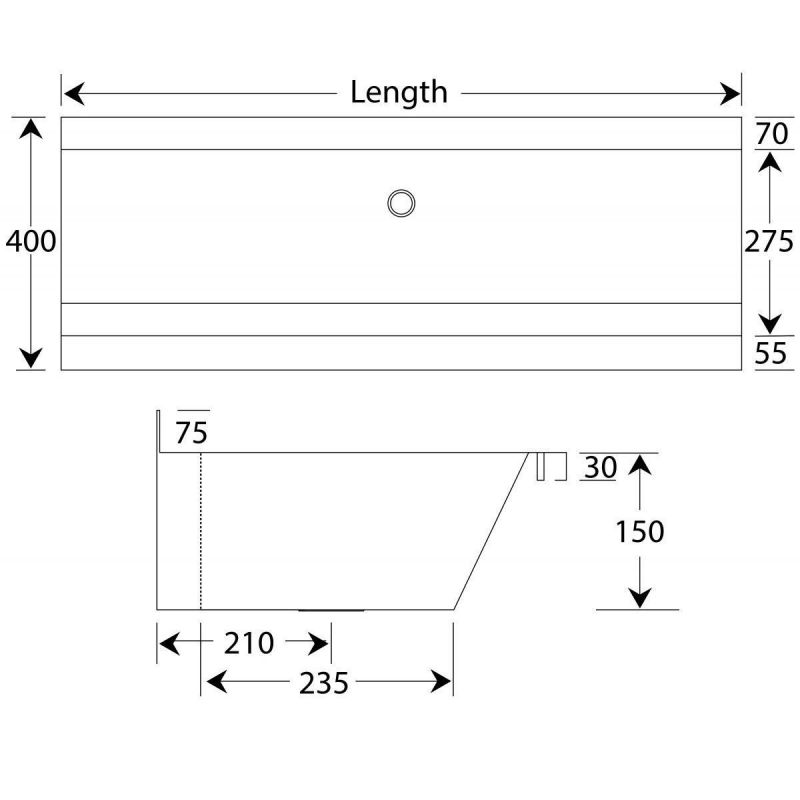

Dimensions
This wash trough can be supplied at different lengths.
- Lengths available: 500mm | 1000mm |1200mm | 1500mm | 1800mm | 2000mm | 2400mm | 2500mm
- Height: 150mm
- Front to back: 400mm
- Rear upstand: 75mm
- Tap Ledge: 70mm
Where can this be installed?
- This wash trough is ideal for locations where multiple users require hand washing facilities at the same time.
- Can be installed inside or outside
- Ideal for schools, colleges, factories etc
- If being installed in an environment where people may lean or sit on the trough, we recommend purchasing a pair of front support legs (see below) for extra support holding the wash trough up
Optional Extras
WE-STANDARD-FL - Stainless steel front support legs (950mm unit height)
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
WE305-TPCVR - Stainless steel trap cover
TAPS AVAILABLE FROM OUR EXTENSIVE RANGE
POWDER COATED FINISH AVAILABLE UPON REQUEST
FOR ANY ENQUIRIES OR QUOTES PLEASE CALL US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
