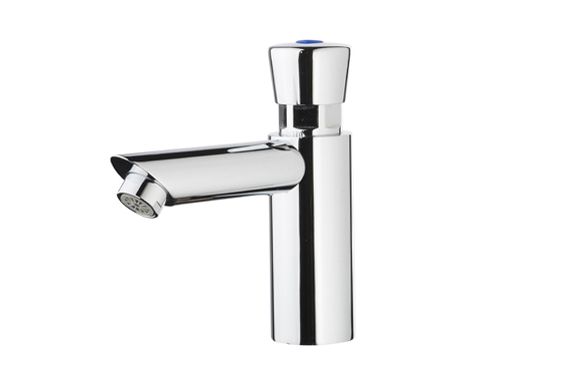

Self Closing Basin Pillar Tap
Self Closing Basin Pillar Tap
Product Code: TVS9080SCBT
No documents uploaded.
Model TVS9080 is our self closing time flow basin pillar tap. Non concussive for water saving applications. WRAS approved with a 2 year warranty*. It is advised that water filters or Y strainers are fitted to the supply pipework to non concussive taps to prevent waterborne debris entering the cartridge (failure to do so will invalidate the warranty if debris has been allowed to enter the tap cartridge)
Material and Specifications
Chrome plated brass
WRAS approved
1/2" standard valve and inlet
Run time of 8-12 seconds
Fitted with aerator for improved water flow
Supplied as single tap
Requires 22mm tap hole
| Maximum Inlet Pressure | 5 Bar |
| Minimum Inlet Pressure | 0.1 Bar |
| Timed flow (standard) | 10 seconds at 1 Bar (approx) |
| Flow Rate | 3 litres per minute |
Delivery
In stock, 1 to 2 working days
Optional Extra
- TVS7001TMV3-15 - thermostatic mixing valve
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
* warranty will not apply in taps where debris is found
