Non-Concussive Time Flow Tap

Non-Concussive Time Flow Tap

Product Code: TVS6922BT

  • Non-Concussive Time Flow Tap
  • Non-Concussive Time Flow Tap

No documents uploaded.

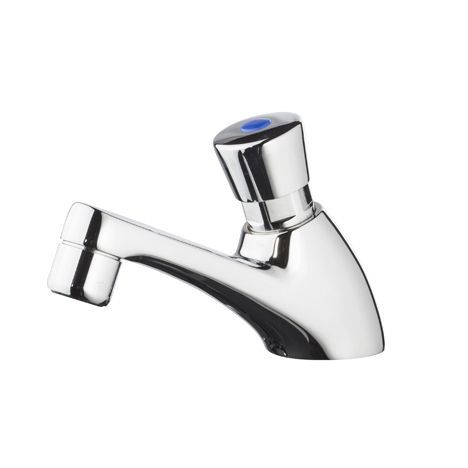

Model TVS6922 is our non-concussive push button time flow taps with vandal resistant design. Vandal resistant as water will only flow once the tap has been released; this is to prevent tampering and flooding. WRAS approved with a 2 year warranty. To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Material and Specifications

Chrome plated brass
WRAS approved
1/2" standard valve and inlet
Run time of 8-12 seconds
Fitted with aerator and flow restrictor to save water
Supplied as singles and pairs
Requires 22mm tap holes
WRAS approved
To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.

Maximum Inlet Pressure 5 Bar
Minimum Inlet Pressure 0.1 Bar
Timed flow (standard) 10 seconds at 1 Bar (approx)
Flow Rate 3 litres per minute

Delivery

In stock, 1 to 2 working days

Optional Extra

TVS7001TMV3-15 - thermostatic mixing valve
- TVS364116 - Y strainer double check valve
