Self Closing Swan Neck Basin Tap
Self Closing Swan Neck Basin Tap
Product Code: TVS9091SCBTFS
No documents uploaded.

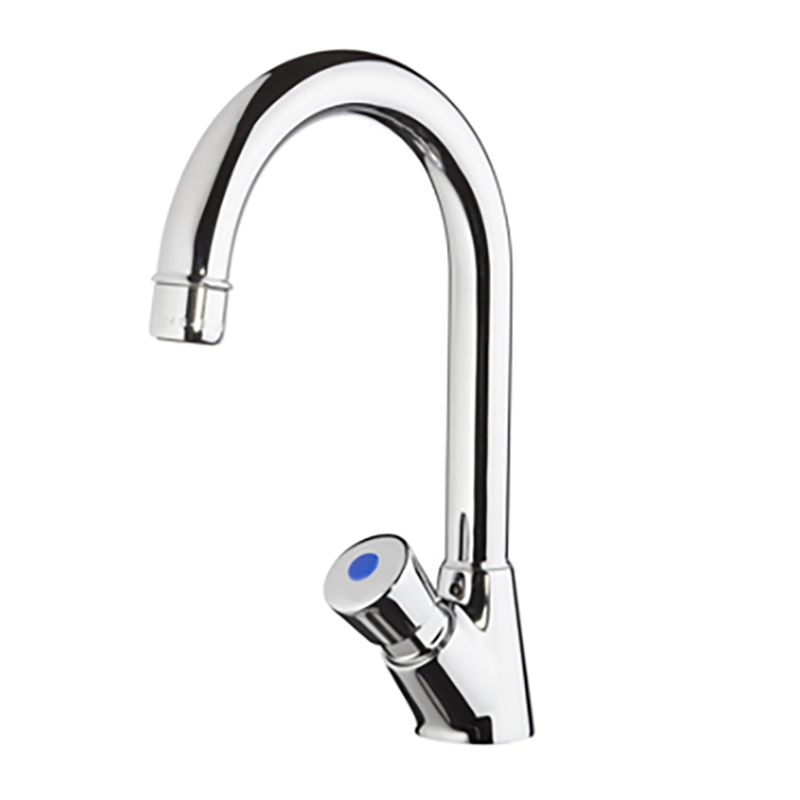

Model TVS9091 is our self closing time flow swan neck basin tap. This tap is fixed and does not swivel. Non concussive for water saving applications. WRAS approved with a 2 year warranty. To maintain the correct operation and extend the lifespan of this unit, a Y-strainer must be included in the water supply system. The Y-strainer plays a critical role in safeguarding internal parts and preserving the tap’s intended flow performance. Please note that not installing a Y-strainer will void the warranty.
Material and Specifications
Chrome plated brass
WRAS approved
1/2" standard valve and inlet
Run time of 8-12 seconds
Fitted with aerator for improved water flow
Supplied as single tap
Supplied with red and blue indices
Requires 22mm tap hole
| Maximum Inlet Pressure | 5 Bar |
| Minimum Inlet Pressure | 0.1 Bar |
| Timed flow (standard) | 10 seconds at 1 Bar (approx) |
| Flow Rate | 3 litres per minute |
Delivery
In stock, 1 to 2 working days
Optional Extra
- TVS7001TMV3-15 - thermostatic mixing valve
- TVS364116 - Y strainer double check valve
